这是液体专用的阿贝式折射仪

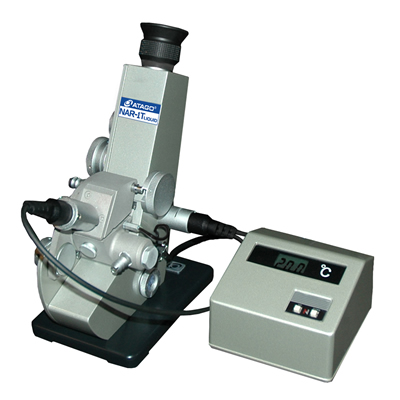

This is the Abbe Rerfactometer for liquid sample measurement only. It has the Refractive Index Scale and the BRIX scale, and it comes with D line (589nm) light source. Calibration can be done with distilled water.
| Model |
NAR-1T LIQUID |
型号 |
1211 |
| 测量范围 |
折射指数 (nD) 1.3000 至 1.7000
糖度( Brix ) 0.0 至 95.0% |
最小显示单位 |
折射指数 (nD) 0.001
糖度( Brix ) 0.5% |
| 测量准确度 |
折射指数( nD ) ±0.0002 糖度( Brix ) ±0.1% |
测量温度范围 |
0 至 50°C |
| 数字式温度计 |
显示范围 0.0 至 50.0°C
( 精度±0.2°C 最小显示0.1°C ) |
电源 |
115V, 220V, 240V
( 请您选择电源 ) 50/60Hz |
| 光源 |
LED |
电力损耗 |
3VA |
| 尺寸重量 |
13×18×23公分, 3.3千克 (折射仪)
8x10x11公分, 0.8千克 (温度计) |
| 选件 |
• 10% 蔗糖溶液 (±0.03%) : RE-110010
• 30% 蔗糖溶液 (±0.03%) : RE-110030
• 50% 蔗糖溶液 (±0.03%) : RE-110050 |
| 消耗品/零件 |
• 1TLIQUID用主菱镜 : RE-1104 (4PIN用)
• 1TLIQUID用副菱镜 : RE-1111
• 温度传感器组套 C : RE-1159
• 阿贝式折射仪通用光源灯泡 LED : RE-1171
• 灯泡用线 : RE-1176
• 扎带 : RE-8507 |
| Model |
NAR-1T LIQUID |
Cat.No. |
1211 |
| Measurement range |
Refractive index (nD) 1.3000 to 1.7000
Brix 0.0 to 95.0% |
Minimum scale |
Refractive Index (nD) 0.001
Brix 0.5% |
| Measurement Accuracy |
Refractive index (nD) ±0.0002 Brix ±0.1% |
Measurement Temperature Range |
0 to 50°C |
| Digital Thermometer |
Indication range 0.0 to 50.0°C
( Accuracy ±0.2°C Minimum indication 0.1°C ) |
Power Supply |
115V, 220V, 240V
( Select one when you place an order. ) 50/60Hz |
| Light Source |
LED |
Power Consumption |
3VA |
| Dimensions & Weight |
13×18×23cm, 3.3kg (Refractometer)
8x10x11cm, 0.8kg (Thermometer) |
| Optional |
•10% Sucrose Solution (±0.03%) : RE-110010
•30% Sucrose Solution (±0.03%) : RE-110030
•50% Sucrose Solution (±0.03%) : RE-110050 |
| Parts |
*As for the consumable & the part please view this. |
产品技术参数
| 技术指标 |
| 测量范围 |
折射指数 (nD) 1.3000 至 1.7000 糖度( Brix ) 0.0 至 95.0% |
| 分辨率 |
折射指数 (nD) 0.001 糖度( Brix ) 0.5% |
| 测量精度 |
折射指数( nD ) ±0.0002 糖度( Brix ) ±0.1% |
| 使用温度范围 |
0 至 50°C |
| 光源 |
LED |
| 选件 |
10% 蔗糖溶液 (±0.03%) |
| 消耗品/零件： 1TLIQUID用主菱镜 |
RE-1104 (4PIN用)；1TLIQUID用副菱镜 |
| 物理特性 |
| 尺寸 |
13×18×23公分 8x10x11公分 |
| 重量 |
3.3千克 (折射仪) 0.8千克 (温度计) |
| 电源 |
115V, 220V, 240V (请您选择电源 ) 50/60Hz |
