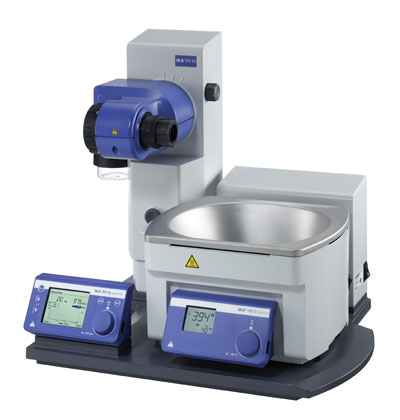

FLEX-ability with the new IKA RV 10 FLEX Packages
The IKA FLEX Packages enable the customer who requires speciality glassware the FLEX-ability of customizing their glassware setup for their specific application.
The RV 10 digital FLEX Package includes the following components:
RV 10 digital drive, HB 10 digital heating bath, RV 10.70 vapor tube NS 29/32, clamps for glassware, woulf bottle
| 冷凝面积 |
0 cm2 |
| 电机原理 |
直流 |
| 速度范围 |
20 - 280 rpm |
| 转动可逆方向 |
是 |
| 升降架 |
马达 |
| 行程 |
140 mm |
| 加热温度范围 |
室温 - 180 °C |
| 加热输出功率 |
1300 W |
| 加热温度控制精确度 |
1 ±K |
| 浴槽最大容量 |
3 l |
| 内置真空控制器 |
不 |
| 计时器 |
是 |
| 外形尺寸 |
500 x 430 x 410 mm |
| 重量 |
20 kg |
| 允许环境温度 |
5 - 40 °C |
| 允许相对湿度 |
80 % |
| DIN EN 60529 保护方式 |
IP 20 |
| RS 232接口 |
是 |
| 电压 |
220 - 240 V |
| 频率 |
50/60 Hz |
| 仪器输入功率 |
1400 W |
